infrared oil analyzer

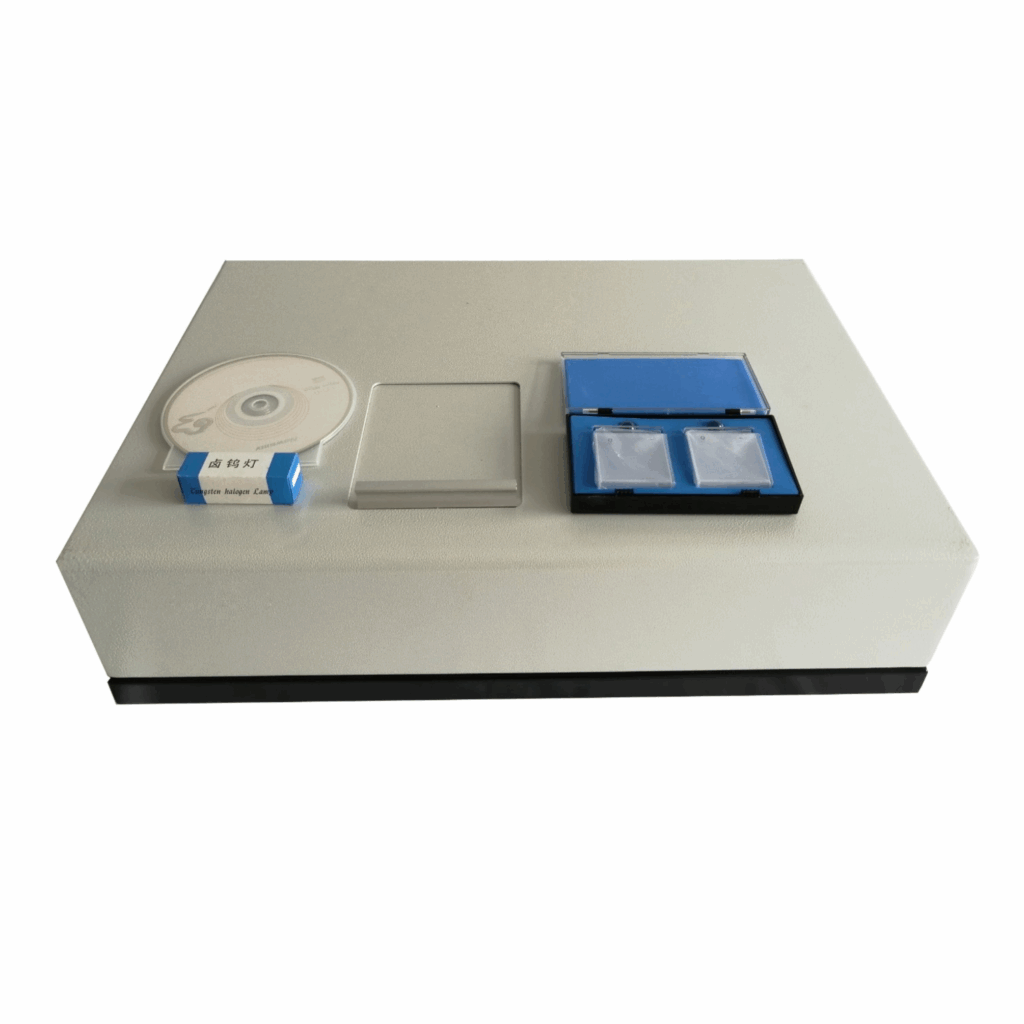

Introduction to our Infrared oil analyzer

Our infrared oil analyzer is a precision instrument used to detect the content of oil substances, widely used in industries such as industry, environmental protection, and chemical engineering. The core principle is based on infrared spectroscopy technology, which detects the absorption characteristics of oil substances at specific wavelengths of infrared light, thereby achieving quantitative analysis of oil content.

Our infrared oil analyzer has the characteristics of high sensitivity, high precision, and fast detection, and is suitable for various application scenarios, including water quality monitoring, petrochemical industry, environmental monitoring, etc. For example, the LB-4102 infrared spectrophotometer can quickly and accurately determine the concentration of oil in water bodies, and is suitable for monitoring the content of petroleum, animal and vegetable oils, and total oil in various water bodies and soils.

Technical Parameter of our oil analyzer

Basic measurement range: 0.00~800mg/L (4cm~0.5cm cuvette)

Water sample measurement range: 0.0012 mg/L~64000mg/L (4cm cuvette)

Detection limit:<0.0012mg/L (water sample, using extraction ratio 100:1,4cm quartz cuvette)

Repeatability: ≤ 1% (for 40mg/L oil sample)

Linear: R>0.999

Wave number range: 3400cm-1~2400cm-1

Absorption range: 0.0000~2.000AU

Basic measurement range: 0.0012 mg/L~100mg/L (4cm cuvette)

Dimensions: 550cm x 380cm x 150cm

Weight: 15Kg Power Supply: (220 ± 22) V (50 ± 1) Hz 35VA

Feartures of our oil analyzer

1. The detachable integrated optical system has a small instrument volume, light weight, and first separates and then absorbs, which meets the requirements of infrared spectroscopy. It has good stability and high signal-to-noise ratio.
2. Adopting electrically modulated light source reduces the heat generation intensity of the light source to facilitate system heat dissipation. At the same time, due to the absence of mechanical cutting motion components, the instrument structure is simplified and the reliability of the instrument is improved.
3. The sensor signal processing adopts a phase-locked amplifier circuit, which improves the instrument’s signal-to-noise ratio and minimum detection limit.
4. Unique colorimetric cell structure design, suitable for any colorimetric dish ranging from 1 to 5 centimeters.
5. The structure is simple, and the optical and electrical systems of the instrument are self-contained, with a high degree of integration, thereby improving the reliability and maintainability of the instrument.
6. Easy to operate, just click the mouse to complete a single oil sample measurement.
7. Fast measurement speed, measuring a sample only takes 1 minute.
8. The software has powerful functions, with measurement data and spectra that can be saved to the hard drive, and spectra can be queried and printed at any time. It also has functions such as automatic zeroing and regression equation calculation.
