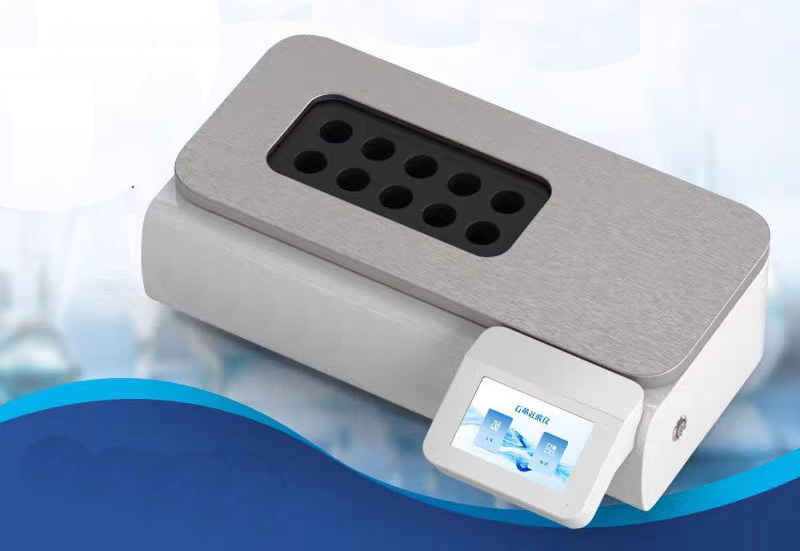

Introduction to Graphite digester

The graphite digester has the advantages of speed, efficiency, and convenience, and is suitable for sample processing in industries such as food, pharmaceuticals, quality inspection, environmental protection, disease control, chemical engineering, and universities. It can be used for pre-treatment and acid removal in microwave digestion, and is an ideal supporting product for analytical instruments such as atomic absorption, atomic fluorescence, ICP-AES, etc. It is more suitable for use with microwave digestion instruments.

Features of Graphite digester

1. Use a 5-inch color touch screen for instrument operation, equipped with an Android operating system for convenience and speed.

2. Adopting PID temperature control technology, with high temperature control accuracy and fast heating speed, it only takes 25 minutes to reach 260 ℃ from room temperature.

3. Segmented temperature control setting, which can be single stage heating or multi-stage heating, with flexible settings. The instrument will automatically complete the process in sequence. It is more suitable for samples prone to foam.

4. High quality graphite furnace core is used, with a small average temperature difference, good sample consistency, and higher thermal conductivity efficiency. Graphite blocks are coated with Teflon, which is corrosion-resistant and extends their service life.

Parameters

-Temperature range:RT±5℃-260℃

-Temperature accuracy：±1℃

-Digestive tube capacity；300ml

-Capacity per batch:10pcs/batch

-Heatting method:Infrared heating and high purity graphite conduction

-Dispaly:5inch high resolution color LCD screen

-Power consumption:1.6kw

-Power supply:AC 220v±10/50Hz

-Size:522*371*168mm

-weight:25kg
