Brief Introduction

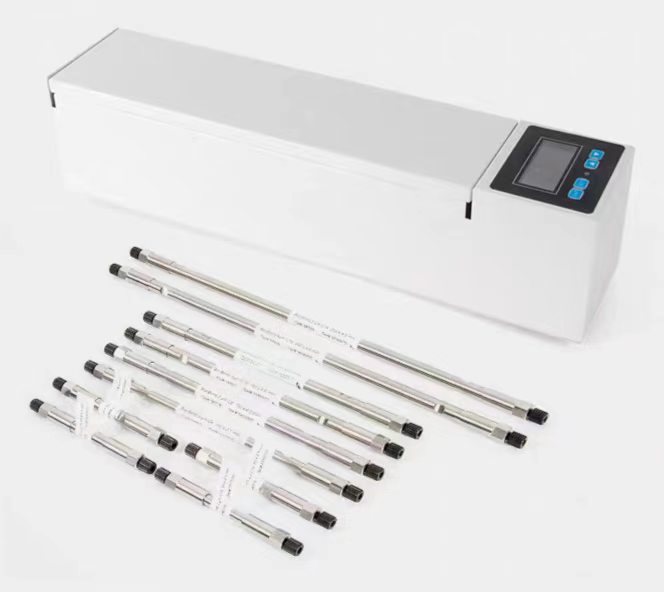

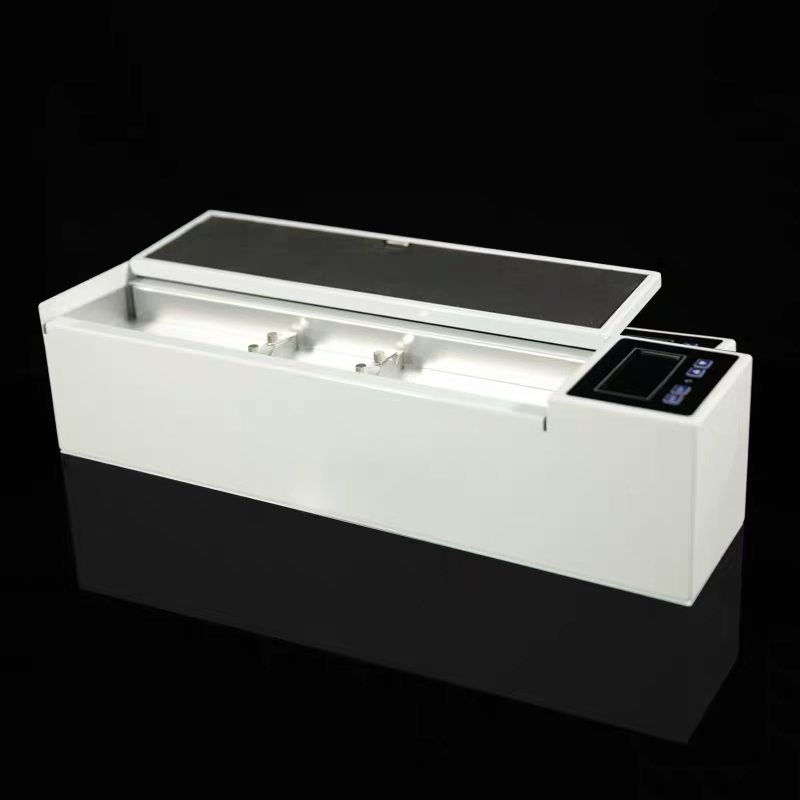

HPLC Column Thermostat is an important supporting equipment for high-performance liquid chromatography, used for precise and stable temperature control of chromatographic columns.It improves column efficiency, enhances peak resolution, shortens retention time, reduces system back pressure, and ensures reproducibility of sample analysis results by controlling the operating temperature of the chromatographic column. For example, controlling the temperature can significantly reduce the back pressure when using a sub 2 μ m chromatographic column, thereby improving the analysis speed.

Parameter of HC-01 HPLC column thermostat

Model	HC-01
Screen display	LCD screen
Temperature setting resolution	0.1℃
Temperature Scope	Room temperature-99.9℃
Temperature accuracy	±0.2℃
Time to set temperature	<5min
Constant temperature error	±0.1℃
Temperature overshoot	<2℃
Absolute accuracy	when 40℃±0.1℃
Repeatability	±0.1℃
Heating power	120w
Constant temperature chamber size	80*40*400mm
Outlook dimension	110*120*500mm
weight	4kg
Voltage	AC220v or AC110v
